3D ultrasonic inspection system (Matrixeye™)

Matrixeye™ high-speed desktop type

Feature 1: High-speed SAFT processing
- Even a large area can be inspected in a short time (more than two times as fast as a portable type - depending on conditions).

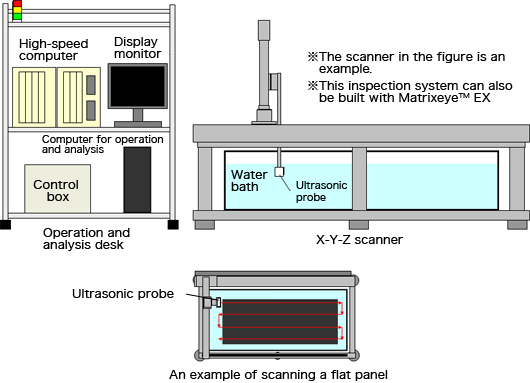

- Combination with mechanical units and high-performance computers allows for building a large-scale in-line inspection system.
Feature 2: Advanced analysis software
- Generation of A-Scan, B-Scan and C-Scan images, and configuration of DAC and GATE
- Automatic calculation of defective area by setting a color pallet and threshold

Matrixeye™ high-speed desktop type

General in-line inspection including aircraft, metallic and casting products, and other large components

Items	Specifications　※
Frequency	2、3.5、5、10、15、25MHz
Number of transmit/ receive channels and elements	256ch(16 × 16)
Number of transmit/ receive channels and elements	64ch(1 × 64)
Required time for imaging	Within 3 seconds (with a mesh size of 32 x 32 x 512, using 256 channels (16 x 16)) Within 0.01 seconds (with a mesh size of 1 x 64 x 512, using 64 channels (1 x 16))
Display	Depends on the imaging processing computer
Power supply	AC100V （50 / 60Hz）
Battery operation time	-
Required hard disk space	Depends on the imaging processing computer
Ambient conditions	Temperature: 5℃ to 35℃, Humidity: 20 to 80 percent * No dew condensation
Interface	Depends on the imaging processing computer
Dimensions	A 256-channel model Imaging unit W235.5mm × D300mm × H340mm Transmit/receive unit W230mm × D300mm × H340mm (Except for projections) A 64-channel model Imaging unit W255.5mm × D300mm × H340mm Transmit/receive unit (main body) W270mm × D300mm × H100mm (Except for projections) Transmit/receive unit (power unit) W105mm × D300mm × H100mm (Except for projections)
Weight of main body	A 256-channel model Approximately 12 kg (imaging unit) Approximately 8.6 kg (transmit/receive unit) A 64-channel model Approximately 12 kg (imaging unit) Approximately 4.3 kg (transmit/receive unit) Approximately 2.4 kg (power unit of transmit/receive unit)

※The specifications above are subject to change without notice.

Matrixeye, Finethrough are registered trademarks of Toshiba Energy Systems & Solutions Corporation.
