Fluoroscopic inspection system with Color I.I.™ (Finethrough™)

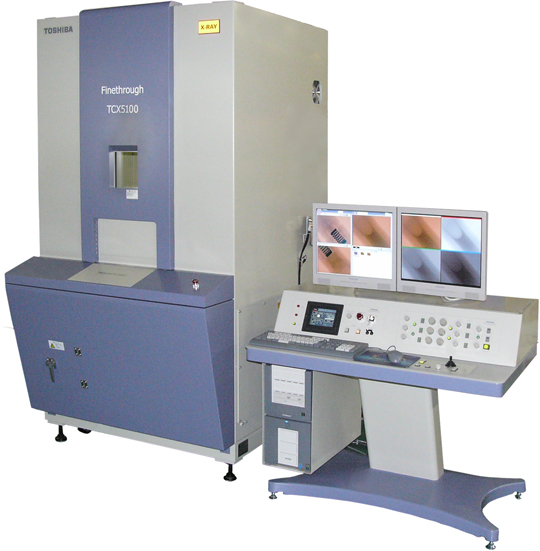

TCX5100
Features
- Feature 1: Improved sensitivity
Decrease in X-ray energy allows for acquisition of higher-contrast images. - Feature 2: Improved resolution
Even a minor defect can be displayed at a high resolution. - Feature 3: Expanded dynamic range
(100 times as wide as that of our existing products) An image of a composite material can be taken at one time.
The large maximum dimension of the subject reduces the time required for inspection.

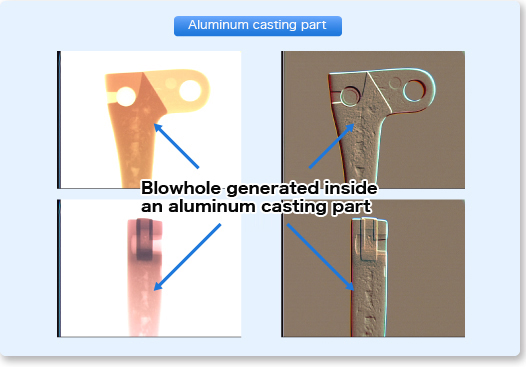

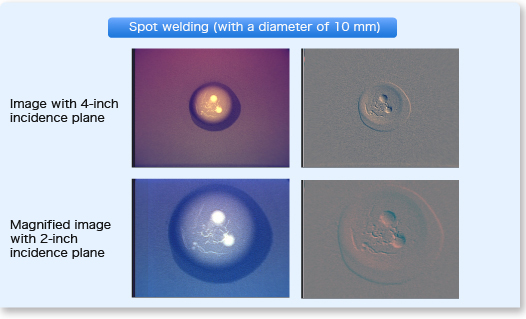

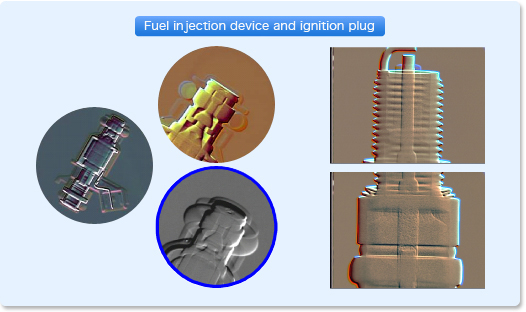

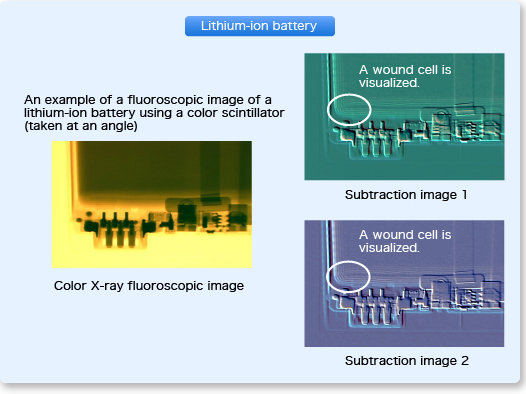

Inspection examples
Specifications of TCX5100
| Model | TCX5100 |
|---|---|
| X-ray tube | Micro-focus X-ray tube |
| Voltage range of X-ray tube | 20 to 90 KVp (竕､0.2 mA) or 40 to 130 KVp (竕､0.3 mA) |
| Focal spot size | 5 microns (nominal value) |
| X-ray detector | Color image intensifier (Color I.I.TM) |
| Inspection field of view | 4 inches: 4°φand 2°φor 6 inches: 6°φand 4°φ(two-mode switching) |
| Camera | Color 3 CCD camera (410,000 pixels in NTSC system) |
| Main body of fluoroscopic system | |
| Material | Steel (partially lead) |
| Dimensions | Approximately W1100mm x D1300mm x H2100mm |
| Weight | Approximately 1,200 kg |
| Travel range of sample table | Side to side: Approximately +/- 150 mm, Front to back: Approximately +/-150 mm, elevation range of Color I.I.TM: Approximately 520 mm |
| Direction of X-ray irradiation axis | Vertical |
| Maximum dimensions of subject | 300mm × 300mm × 145mm |
| Maximum weight of subject | Approximately 3 kg |
| Measurement control unit | |
| Dimensions | Approximately W900mm x D800mm x H1320mm |
| Weight | Approximately 70 kg |
| Control units | 1 set of X-ray control unit 1 set of Color I.I.TM control unit |
| Imaging units | 1 set of imaging controller (computer), 19-inch color LCD monitor |
| Accompanying software | 1) Windows® XP 2) Image-Pro® Express |
※The specifications above are subject to change without notice.
