Fluoroscopic inspection system with Color I.I.™ (Finethrough™)
TCX4200A
Features
- Feature 1: Improved sensitivity
Decrease in X-ray energy allows for acquisition of higher-contrast images. - Feature 2: Improved resolution
Even a minor defect can be displayed at a high resolution. - Feature 3: Expanded dynamic range
(100 times as wide as that of our existing products) An image of composite material can be taken at one time.
Inspection examples

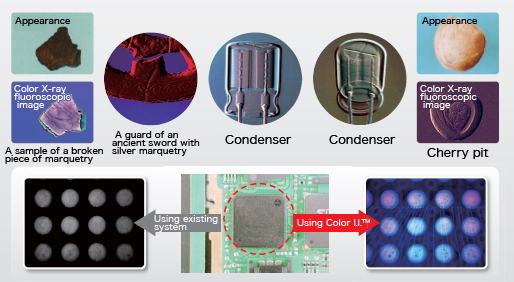

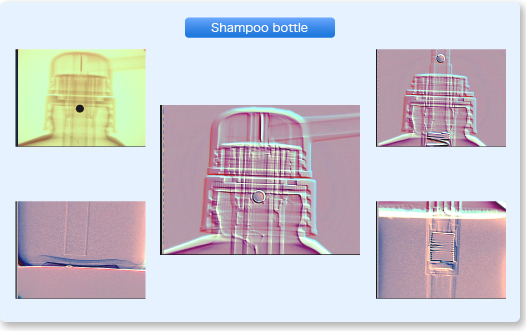

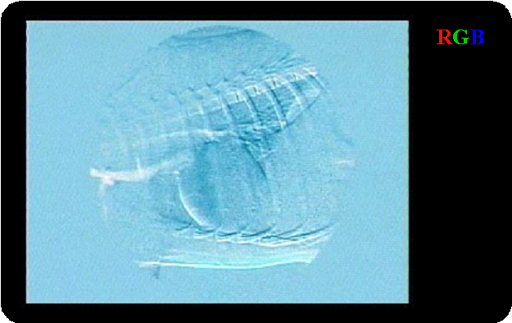

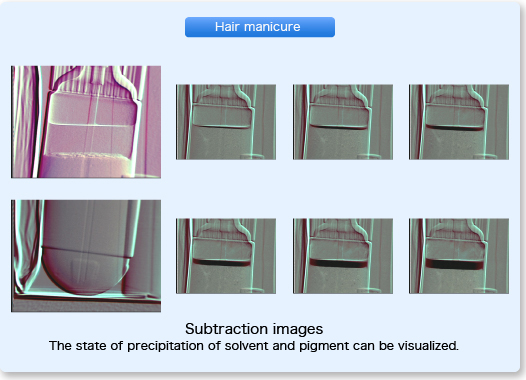

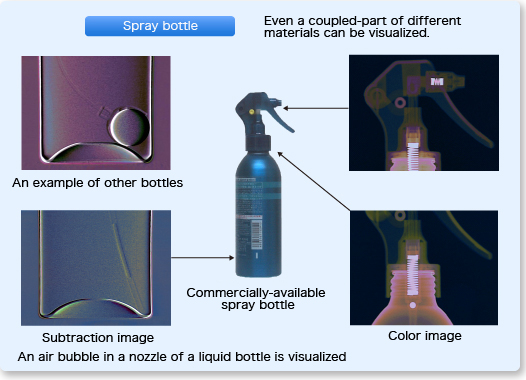

Display image by Color I.I.™
- You need Adobe Flash Player Version 8.0 or later to play the video file.
Specifications of TCX4200A
| Model | TCX4200A |
|---|---|
| XX-ray tube | Mini-focus X-ray tube |
| Voltage range of X-ray tube | 10 to 60 KVp (竕､0.83 mA) or 40 to 100 KVp (竕､0.5 mA) |
| Focal spot size | 100 microns (nominal value) |
| X-ray detector | Color image intensifier (Color I.I.™) |
| Inspection field of view | 4inches: 4°φ and 2°φ (two-mode switching) |
| Camera | Color 3 CCD camera (410,000 pixels in NTSC system) |
| Main body of fluoroscopic system | |
| Material | Steel (partially lead) |
| Dimension | Approximately W850mm x D800mm x H1600mm |
| Weight | Approximately 550 kg |
| Travel range of sample table | Side to side: Approximately +/- 150 mm, Front to back: Approximately +/-200 mm, Up and down: Approximately 230 mm, Rotation: 360° |
| Direction of X-ray irradiation axis | Horizontal (possible to observe liquid surface) |
| Maximum dimension of subject | φ150mm × H230mm |
| Maximum weight of subject | Approximately 5 kg |
| Measurement control unit | |
| Dimensions | Approximately W900mm x D800mm x H1320mm |
| Weight | Approximately 70 kg |
| Control units | 1 set of X-ray control unit 1 set of Color I.I.TM control unit |
| Imaging units | 1 set of imaging controller (computer), a 19-inch color LCD monitor |
| Accompanying software | 1) Windows® XP 2) Image-Pro® Express |
※The specifications above are subject to change without notice.
