3D ultrasonic inspection system (Matrixeye™)

Option

X-Y scanner

X-Y scanner

Application
Flat surface and slightly curved surface
Specifications
Items Specifications
Weight Approximate 8.5 kg (except for an anti-dropping suction cup)
Detection range 400 mm in length, 400 mm in width
Trigger pitch X-axis (by 0.2 mm at minimum)
Width of index 24 mm or 48 mm
Suction cups Three fixed cups and one anti-dropping cup
Length of cable 2 m

Encoder

  • Wire encoder

    Wire encoder

    Application
    Flat surface that an X-Y scanner cannot be used on
    Specifications
    Items Specifications
    Trigger pitch By 0.2 mm at minimum
    Length of wire 2.4 mm
    Length of cable 2 m
  • Rotary encoder

    Rotary encoder

    Application
    A case where a wire encoder cannot be used, and curved surface
    Specifications
    Items Specifications
    Trigger pitch By 0.2 mm at minimum
    Length of cable 2 m

Back to page top

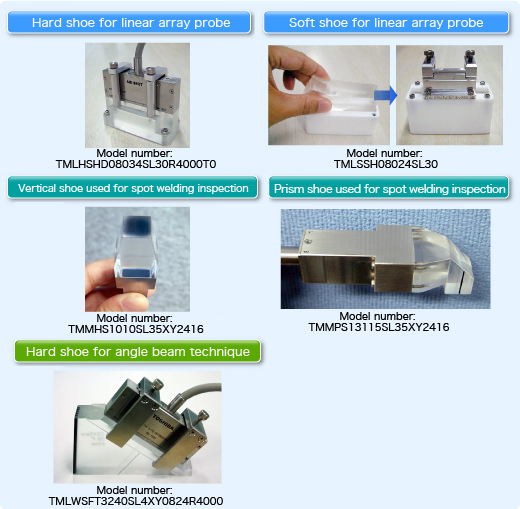

Probe shoe

Probe shoe

  • Matrixeye, Finethrough are registered trademarks of Toshiba Energy Systems & Solutions Corporation.
