Optional Accessories

X-Y Scanner
Encoder
Probe Shoes

X-Y Scanner

Application

For flat and slightly curved surfaces

Specifications

X-Y Scanner Specifications
Items	Specifications
Weight	Approx. 8.5 kg (excluding anti-dropping suction cup)
Detection range	400 mm (length), 400 mm (width)
Trigger pitch	X-axis (minimum 0.2 mm)
Width of index	24 mm / 48 mm
Suction cups	3 (three) fixed cups and 1 (one) anti-dropping cup
Length of cable	2 m

Encoder

Wire Encoder

Application

For Flat surface where the X-Y scanner cannot be applied.

Specifications

Encoder Specifications
Items	Specifications
Trigger pitch	Min. 0.2 mm
Length of wire	2.4 m
Length of wire	2 m

Rotary Encoder

Application

For curved surfaces where wire encoders cannot be used

Specifications

Rotary Encoder Specifications
Items	Specifications
Trigger pitch	Min. 0.2 mm
Length of wire	2 m

Probe Shoes

(Optional attachments for linear array probes)

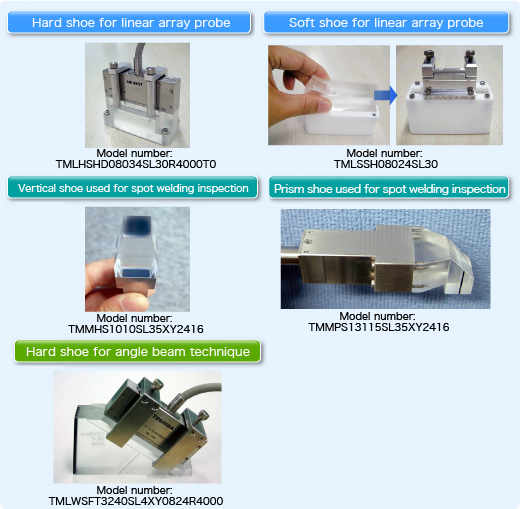

Hard shoe for linear array probe, Soft shoe for linear array probe, Vertical shoe used for spot welding inspection, Prism shoe used for spot welding inspection, Hard shoe for angle beam technique
